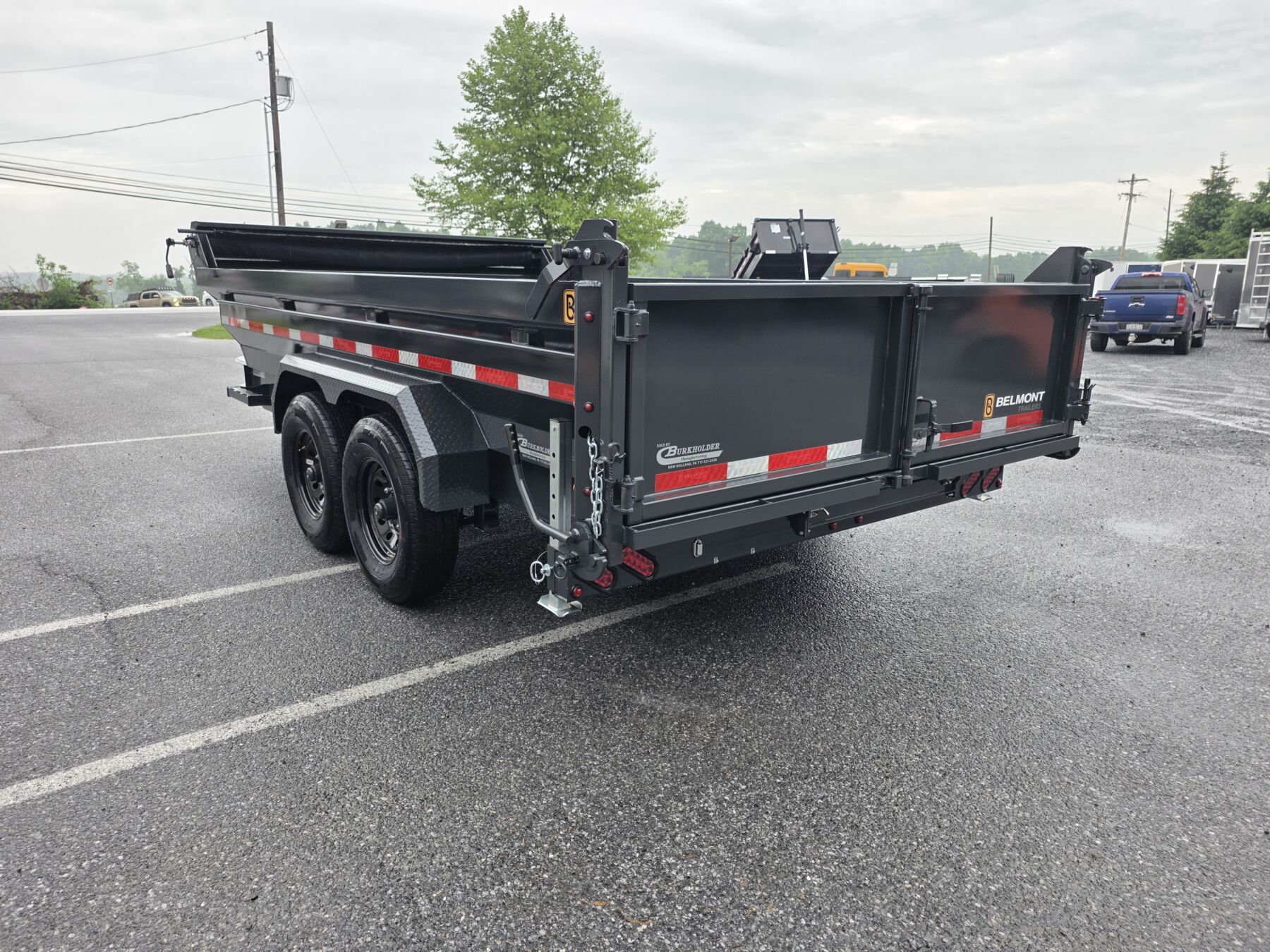

7′ x 14’ 14K , ( Model # DLX8214-14K ) HD Belmont Dump
14,000 lb. GVW – 4,660 lb. empty – 9,340lb. payload
( 82” Inside Bed )
20’ Overall Length – 27” Deck Height
7,000 lbs. Dexter Axles
HD Slipper Spring Suspension
235/80R16 LRE Radial Tires
(4) Wheel Electric Brakes
1 Piece Formed I-Beam Main Frame
*** Light-Weight Dent Resistant HARDOX Floor ***
*** 24” High Rigid Reinforced STRENX Walls ***
Heavy Duty Custom Diamond Plate Formed Fenders
12 Volt High Flow Hydraulic Pump

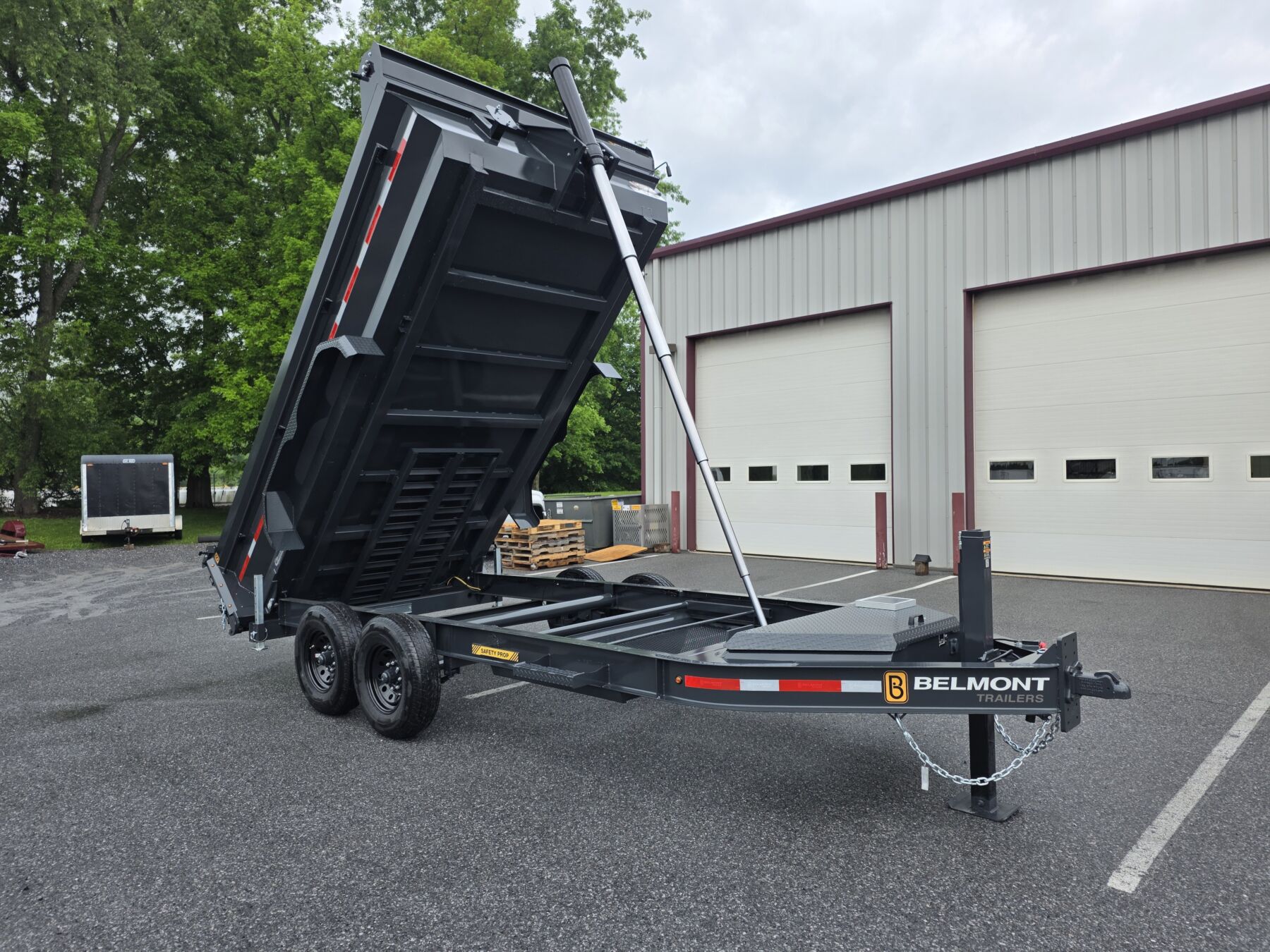

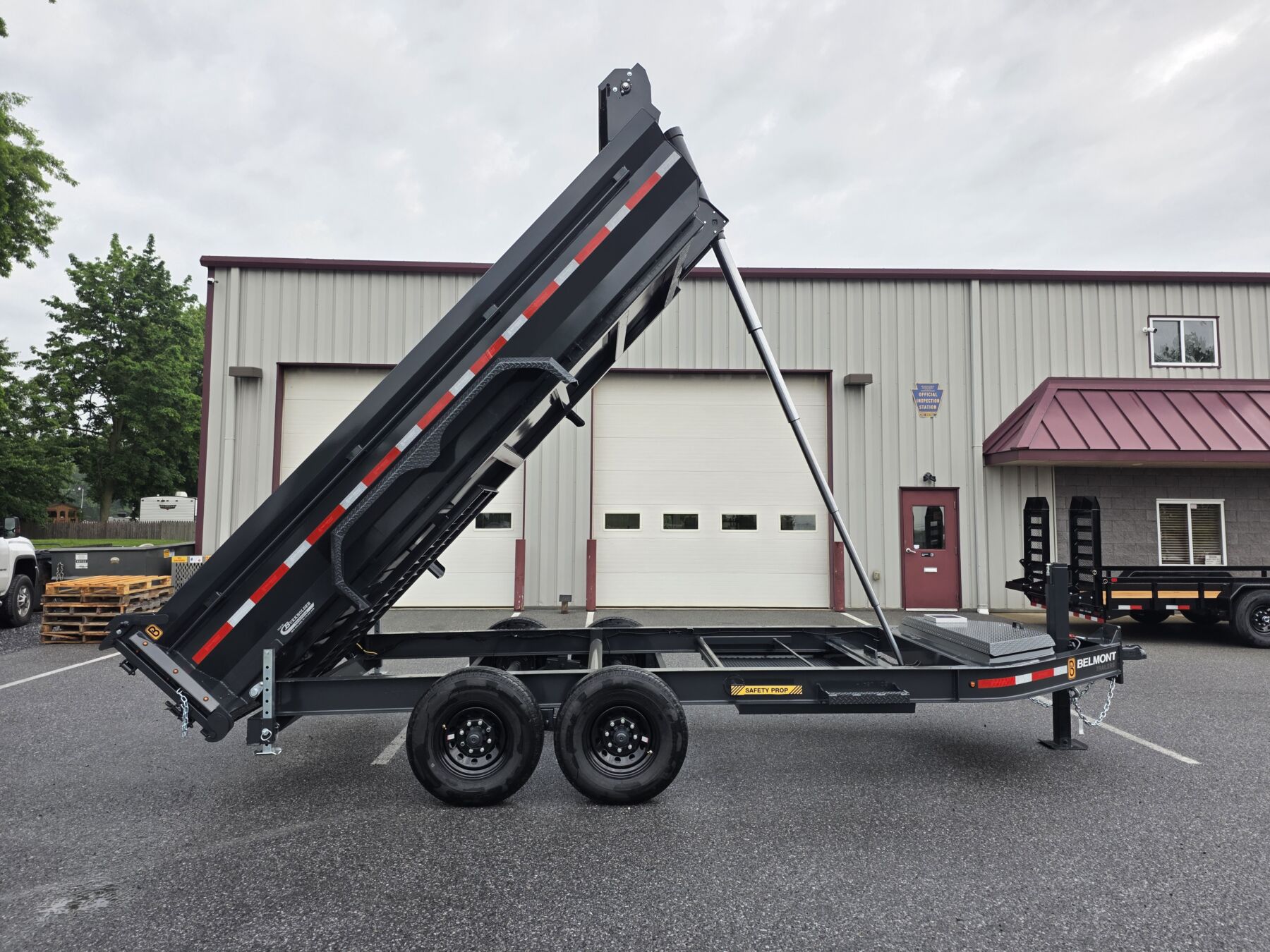

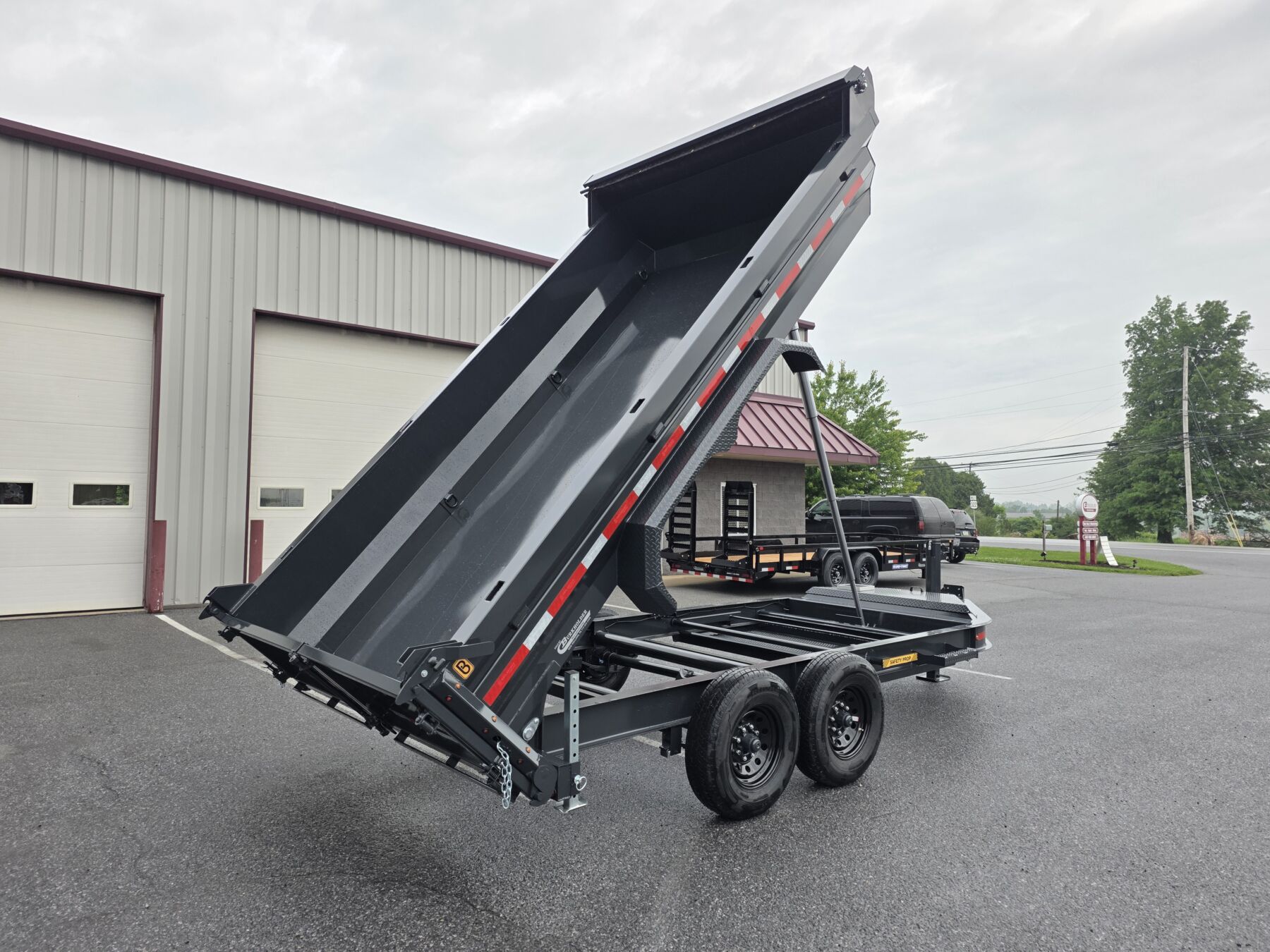

5 Stage Front Telescopic Hoist (Power Up, Gravity Down)
3-Way Tailgate-Barn Doors, Spreader/Dump and Tailgate
6’ Slide Out Ladder Ramps
Retractable Rear Support Stands, Zinc Plated
Mash Tarp & Roller Kit
(8) D-Ring Tie-Downs on Side Wall
Under Body Tool Basket
4 Bolt Adjustable Coupler
12,000 lbs Hydraulic Jack
5 Year MFG Warranty
****** Options Added To Base Trailer ******
– Formed Steel Tarp Cover
– Solar Charger
– Anti Sail Bar for Mesh Tarp
